Control Board and Compressor Quoted Together
A quote naming both a control board and a compressor deserves the diagnosis behind it spelled out, because from the kitchen either fault can look like the other.
Sub-Zero Repair Sammamish · (425) 610-8986 · $89 service call, credited
- Compiled by
- Marta Fennimore
- Holds
- EPA 608 certified
- Dated
- Years at the work
- 12
A board that stops powering the compressor looks like a dead compressor
The control board decides when the compressor runs and sends it the power to do so. If the board stops doing that, the compressor sits silent and the cabinet warms, which from the kitchen looks exactly like a failed compressor. The reverse is just as confusing: a compressor that cannot pump leaves a working board calling for cold that never comes.
That is why the two parts turn up on one quote. Sub-Zero's service manual for the 600-3 built-in series treats them as separate branches of the same warm-cabinet complaint: a power-to-compressor fault, tested at the control board, and a sealed-system fault, worked through with its own diagnostic tables.
Sub-Zero Repair Sammamish · (425) 610-8986
The diagnosis should say which of the two has actually failed
Before both parts are priced, ask what was tested. Two findings separate the faults:

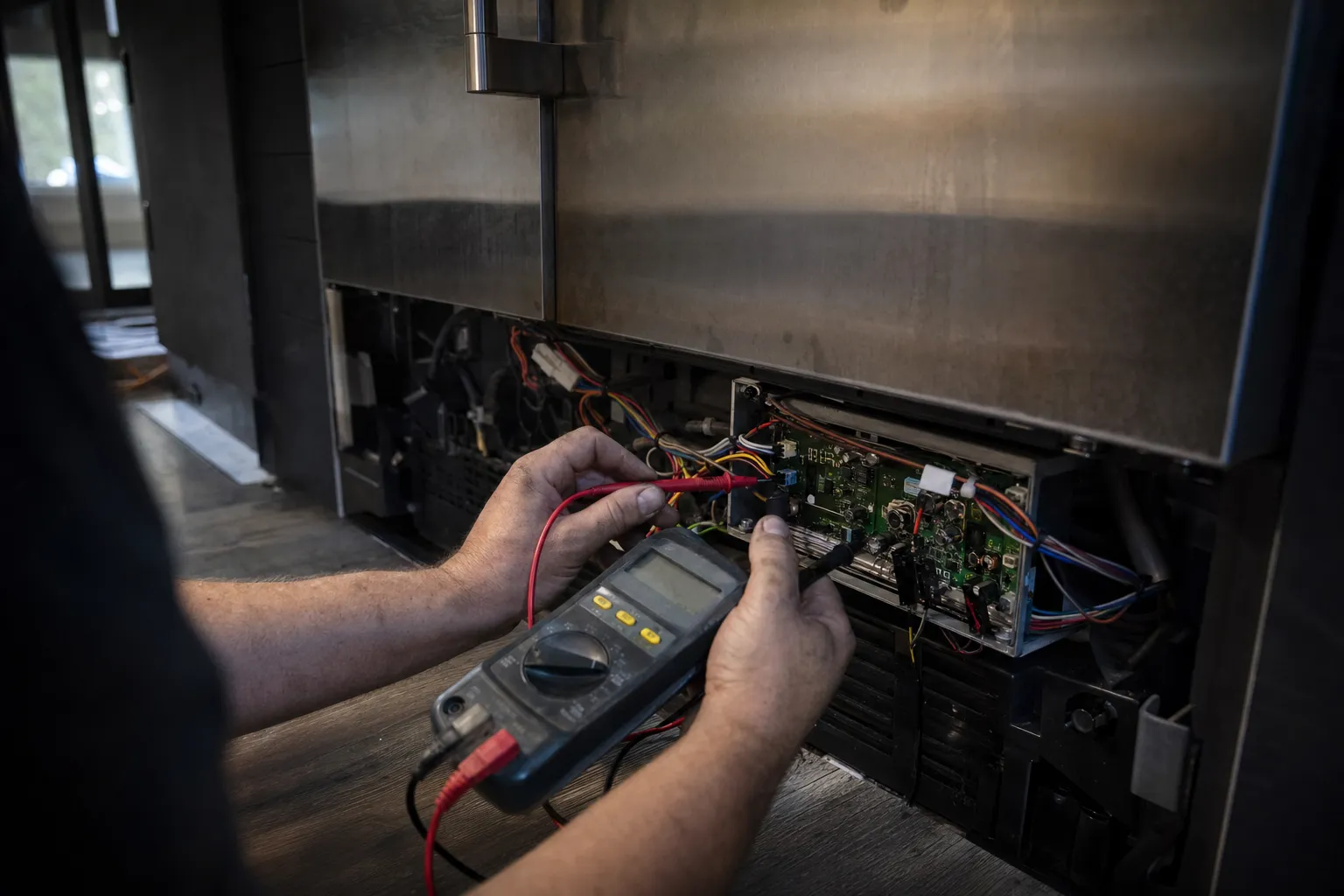

- Power at the compressor. Is the board sending power when it calls for cooling? If not, the board or its wiring is the first suspect.
- The sealed system itself. If power arrives and the compressor still does not pump, the sealed system is read with gauges. The 600-3 manual says to enter the sealed system for pressures only when the troubleshooting guides cannot pinpoint the cause.
A quote naming both parts should show which test pointed at which part, and whether one of them might be enough.
Sub-Zero Repair Sammamish · (425) 610-8986
Column one
If you repair
- The work
Fit the new board first so the compressor gets a steady supply, then open the sealed system, change what failed and bring the cabinet back to temperature.
- What it comes to
-
$400–$940 plateau range for electronic control board
$1,460–$3,380 plateau range for compressor or sealed-system repair
The $89 visit is credited against it once you say yes.
- Still unknown
Whether the rest of the cabinet, from gaskets to fans, keeps pace with two new major parts sitting in an older unit.
- This column wins when
The diagnosis clearly shows both faults, the cabinet and doors are sound, and a replacement would mean reworking an opening or its custom panels.
Sub-Zero Repair Sammamish · (425) 610-8986
Column two
If you replace
- The work
Wait for the one written figure that covers both parts, set that against the cost of a new unit, and only then choose a model and arrange its delivery and fitting.
- What it comes to
-
$11,550–$20,400 reference figure on the plateau for a comparable built-in replacement, before installation and cabinetry work
- Still unknown
Whether the second fault was ever real: a quote naming two parts without saying which test found which leaves the comparison resting on a number that may be too high.
- This column wins when
The combined figure comes close to the replacement figure, the cabinet shows other wear, or the kitchen is being changed around it anyway.
Sub-Zero Repair Sammamish · (425) 610-8986
When both parts really are needed on the same visit
Both can fail on the same unit. When the diagnosis shows it, they are done together: the board first, so the compressor has a dependable supply, then the sealed-system work. Whenever the sealed system is serviced, Sub-Zero's 600-3 manual requires the high-side filter-drier to be replaced, so that goes in as well.
The page shows the two bands added together because that is the honest reach of the combined job. One written figure replaces them once the unit has been diagnosed, and that is the number to set against the replacement column.
Sub-Zero Repair Sammamish · (425) 610-8986
Asked about this situation
Can the board be replaced first to see whether the compressor recovers?
Sometimes, when the diagnosis leaves genuine doubt about the compressor. Changing the board and watching how the unit runs can spare a sealed-system job that was never needed. Ask for that plan in writing, including what follows if the compressor still fails. Sub-Zero Repair Sammamish, (425) 610-8986, explains which part each test points to.
What happens if the compressor still fails after a new board?
Then the sealed-system work follows as its own repair, and the new board is not wasted, because the compressor needs it to run. Knowing that possibility at the start is exactly why a two-step plan should be written down. Sub-Zero Repair Sammamish gives the second figure in writing before any sealed-system work begins.
